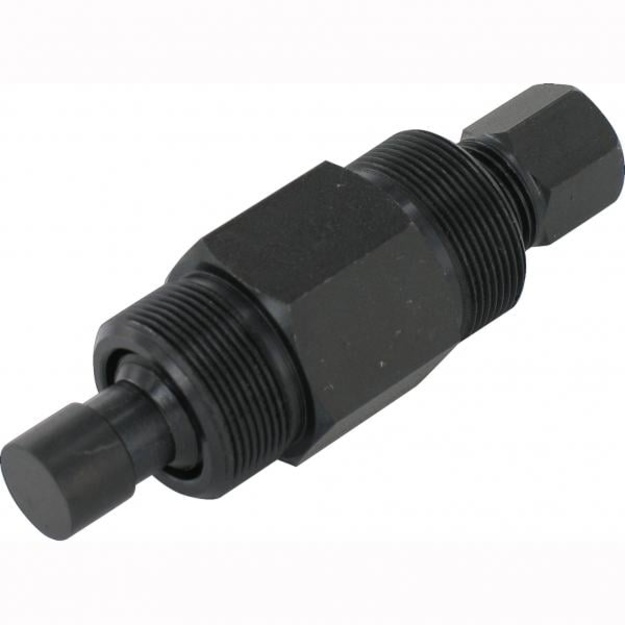

Crank extractor VAR PE-39300 M22 and M23x100

The VAR PE-39300 is the crank extractor to have in the workshop when you service square taper cranksets. One double-ended body carries two extractor threads, so you are covered whether the crank uses the common M22 standard or the older M23 x 100 one.

The M22 end fits Shimano, Campagnolo, SRAM and Stronglight cranks, while the M23 x 100 end serves vintage TA cranksets that most modern pullers simply miss. The tool is driven with an ordinary external spanner, and it is made by VAR, a long-established French bicycle tool manufacturer.

Technical data

• Type: Crank extractor for square taper cranks
• Reference: PE-39300
• EAN: 3435540393003
• Design: Double-ended (reversible) tool, two extractor threads in one body
• Thread 1: M22 - Shimano, Campagnolo, SRAM, Stronglight
• Thread 2: M23 x 100 - TA (for example vintage TA Cyclotouriste)
• Operation: Driven with an external spanner (not included)
• Note: The crank bolt washer must be removed and the thread fully seated before tightening

The spanner is not included, so tell us if you need one as well and we will suggest a suitable size.
