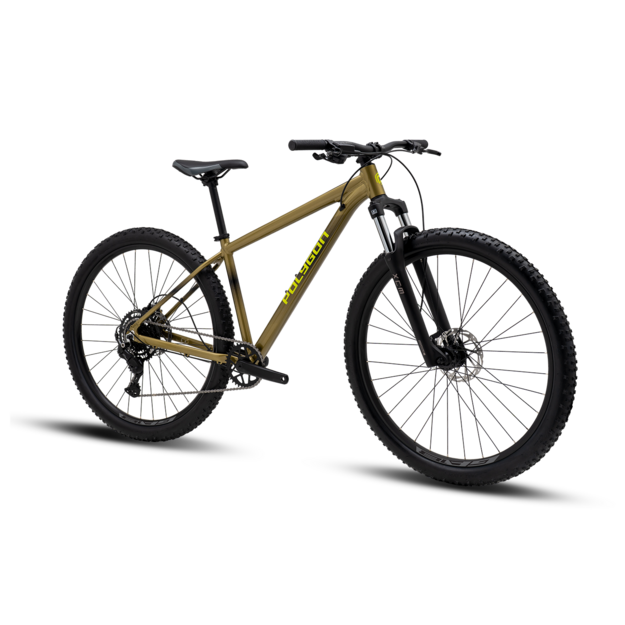

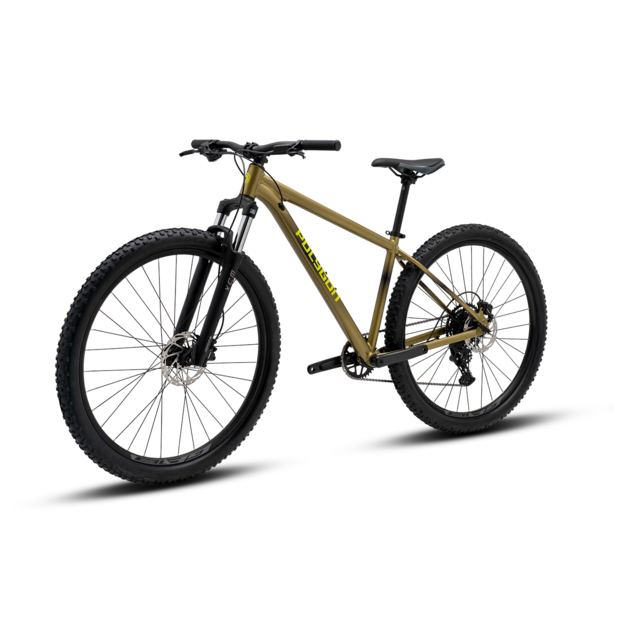

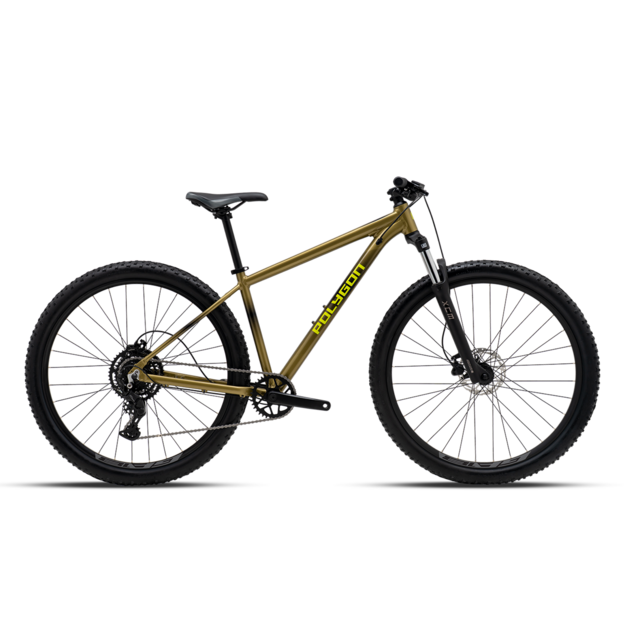

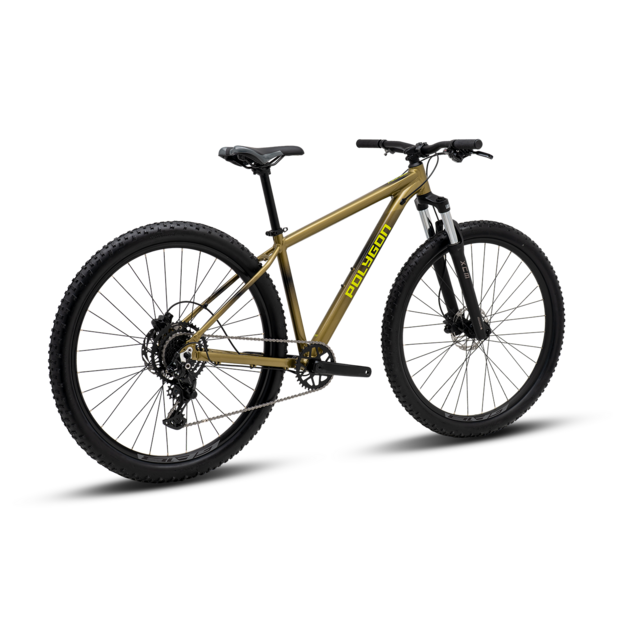

Bike 29 POLYGON CASCADE 4 GREEN

POLYGON CASCADE 4 – a hardtail on a hydroformed ALX alloy frame with a stouter SR Suntour XCM 32 fork (100 mm travel) and a 1x9-speed Shimano CUES drivetrain. Hydraulic disc brakes with 160 mm rotors and an 11–46T cassette provide low gears for steep climbs, while the 2.25 tyres deliver grip on rough ground.

Frame and fork

• Frame: ALX XC SPORT FRAME
• Fork: SUNTOUR XCM 32, 100 mm travel

Drivetrain

• Rear derailleur: SHIMANO CUES RD-U4000GS
• Shifters: SHIMANO CUES SL-U4010, 1x9-speed
• Cassette: SHIMANO CUES CS-LG300, 11-46T
• Crankset: PROWHEEL C10Y-NW, 36T
• Chain: KMC X-GLIDE

Brakes

• Brakes: Hydraulic disc, 160 mm rotors

Wheels and tyres

• Rims and hubs: ALLOY DOUBLE WALL rims, 32H hubs front ALLOY 100 mm 32H QR, rear ALLOY 135 mm 32H QR
• Tyres: 29 x 2.25

Cockpit

• Handlebar: POLYGON SPORT, W: 700 mm, B: 31.8 mm, rise 20 mm
• Stem: POLYGON SPORT, E: 40 mm, B: 31.8 mm
• Saddle: Black saddle, steel rails ø7 mm
• Seatpost: POLYGON SPORT, 27.2x350 mm

• Wheel size: 29
• Sizes: XL
• Approximate weight: 14.8 kg
• Maximum load: 120 kg
