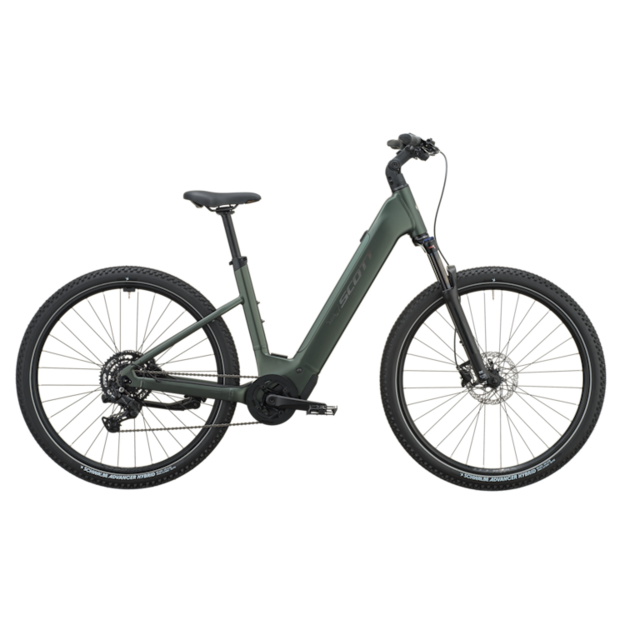

Bike 28 SCOTT AXIS 40 WAVE Kelp Green

The SCOTT Axis is an electric hybrid for riders who do not want to choose between the city and the forest. A Bosch motor, a 120 mm fork and wide 60 mm tyres let the same bike handle the commute and the weekend gravel road — where a narrower city bike would already feel out of its depth.

This model has the low step-through (WAVE) frame: getting on is easy, with no need to swing a leg over the frame.

Key specification

• Frame: 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface, 12x148mm with 52mm Chainline
• Fork: SR Suntour XCM 32 5TA COIL, 120 mm travel
• Motor: Bosch Performance Line, 75 Nm
• Battery: 540 Wh
• Display: Bosch Purion 200
• Drivetrain: Shimano Cues RD-U4000 9-Speed
• Cassette: Shimano Cues CS-LG300, 9-Speed 11-46T
• Crank: FSA CK 220 165mm
• Chain: Shimano CN-LG500
• Brakes: Shimano BR-MT200, 180 mm (hydraulic disc brakes)
• Wheels: X18 Disc
• Tyres: Schwalbe Advancer 60-622
• Handlebar: Syncros UC3.0 680mm, Rise 19mm, Backsweep 15°
• Seatpost: Syncros M3.0, 31.6mm, 350mm
• Saddle: Selle Royal Explora Moderate Wide 195mm
• Equipment: Kickstand
• Max. system weight: 160 kg
• Weight: 27.7 kg
• Frame sizes: S, M, L, XL

Choose the size by your height — if in doubt, get in touch and we will help you pick.
