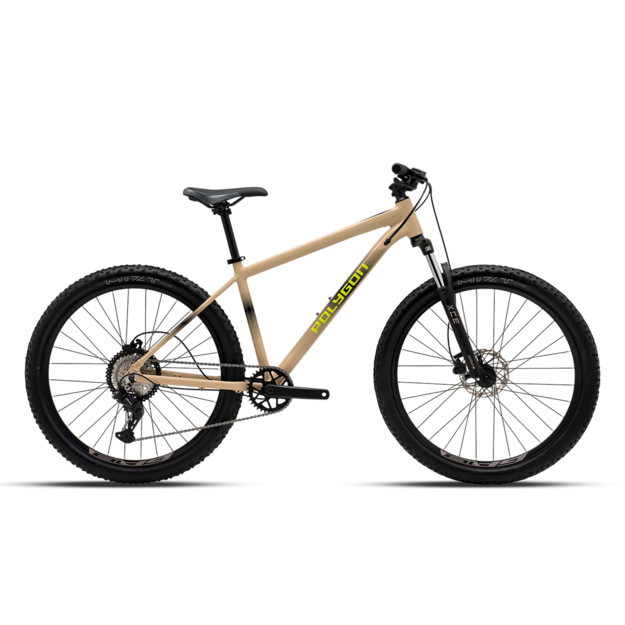

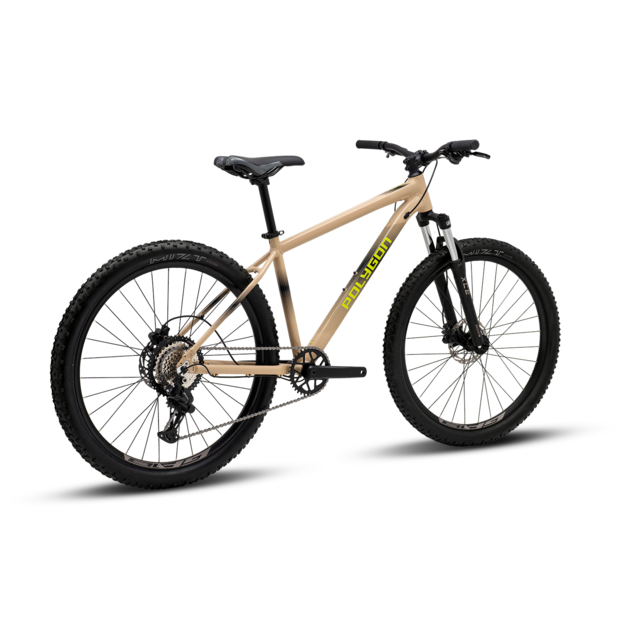

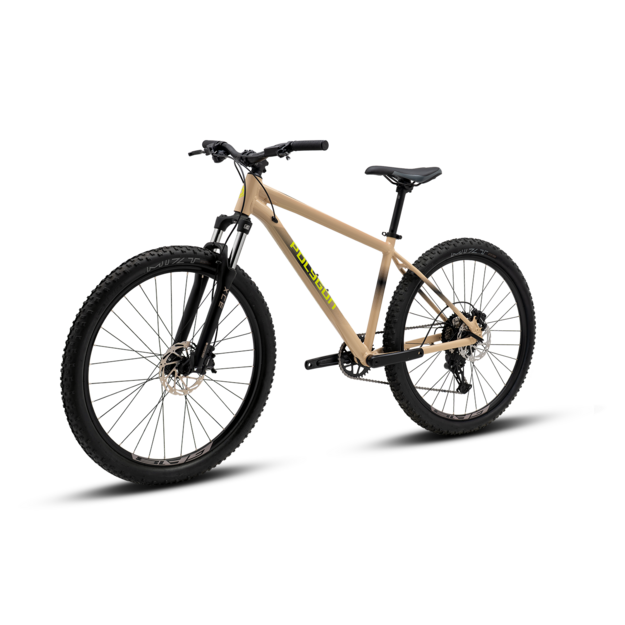

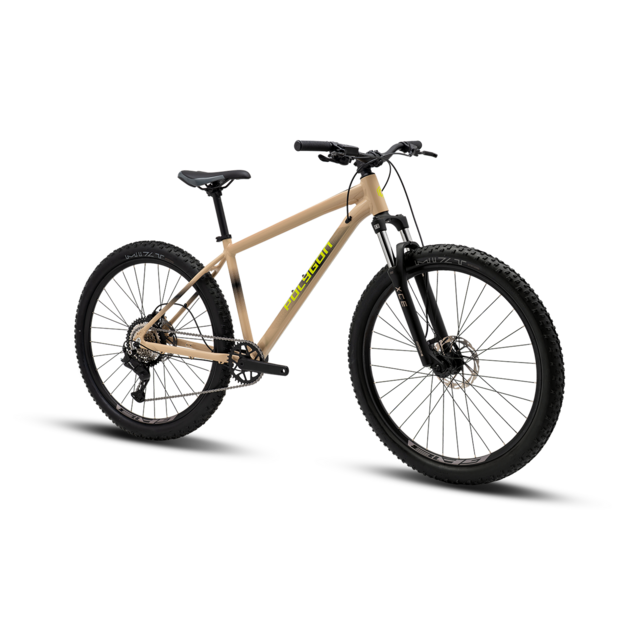

Bike 27.5 POLYGON CASCADE 3 CREAM

POLYGON CASCADE 3 – a lightweight hardtail built around a hydroformed ALX alloy frame, with an SR Suntour XCE 28 suspension fork (100 mm travel) and a 1x8-speed Shimano Essa drivetrain. Hydraulic disc brakes with 160 mm rotors, a wide 11–45T cassette and 2.25 knobby tyres make it equally at home on city streets and forest trails.

Frame and fork

• Frame: ALX XC SPORT FRAME
• Fork: SUNTOUR XCE 28, 100 mm travel

Drivetrain

• Rear derailleur: SHIMANO ESSA RD-U2000
• Shifters: SHIMANO ALTUS SL-M315, 1x8-speed
• Cassette: SHIMANO CS-HG400, 11-45T
• Crankset: PROWHEEL C10Y, 36T
• Chain: KMC Z-8.3

Brakes

• Brakes: Hydraulic disc, 160 mm rotors

Wheels and tyres

• Rims and hubs: ALLOY DOUBLE WALL rims, 32H hubs front ALLOY 100 mm 32H QR, rear ALLOY 135 mm 32H QR
• Tyres: 27.5 x 2.25

Cockpit

• Handlebar: POLYGON SPORT, W: 700 mm, B: 31.8 mm, rise 20 mm
• Stem: POLYGON SPORT, E: 40 mm, B: 31.8 mm
• Saddle: Black saddle, steel rails ø7 mm
• Seatpost: Alloy, 27.2x350 mm

• Wheel size: 27.5
• Sizes: S / M / L
• Approximate weight: 15.3 kg
• Maximum load: 120 kg
